Documentation of TRNBpy Tool

Name	TRNBpy
Version	2.0
Licence	MIT
Author	MEUNIER Guilwen
Last update	October 2026

Overview of TRNBpy

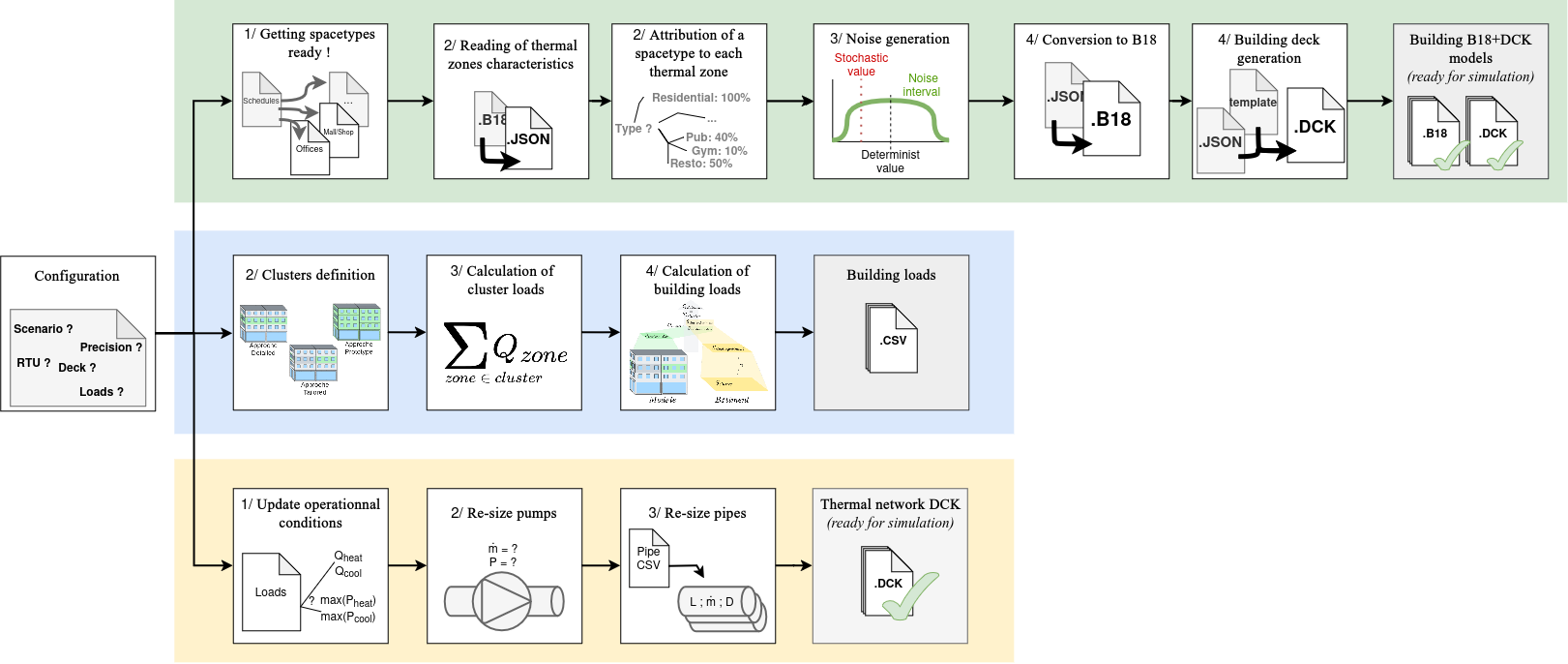

As shown in following figure, the TRNBpy tool serves three distinct purposes:

1. First, to simplify and automate the entry of operational assumptions into building structural files (green path). At the end of these steps, TRNBpy will generate building files in JSON and B18 formats, as well as the necessary decks (DCK) to run simulations using TRNEdit.

2. Second, to scale the model loads to the building loads (blue path). To do this, three similar algorithms enable scaling for each of the three methods: Detailed, Tailored, and Prototype.

3. Third, to generate a deck file to simulate a heating and cooling system sized according to the input loads (yellow path).

Table of contents

Contents:

• Documentation of TRNBpy Tool
  • 0. Configuration
  • 1. Model Generation
  • 2. Calculation of Building Loads
  • 3. Generation of the Heating Network
• Example of use
  • 1. Create project data
  • 1.1 Building CSV description
  • 1.2 Model structural b18 files
  • 1.3 Spacetype json files
  • 2. Configure tool
  • 3. Create Configuration object
  • 4. Call the functions
• Code documentation
  • 1. Site data builder
  • 2. JSON builder
  • 3. Noise builder
  • 4. Deck builder
  • 5. Load builder
  • 6. Thermal network builder
  • 7. Log file builder
  • 8. Translate to B18
  • 9. Utilities
• Licence
